Description

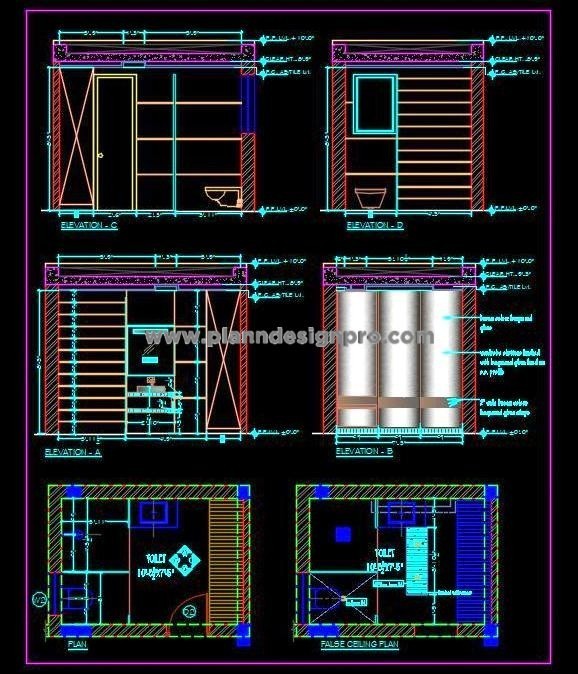

This Free AutoCAD drawing provides a comprehensive and detailed layout for a toilet with dimensions of 1800x2700 mm (6'x9'). Designed with precision, this drawing includes all essential components such as a WC, a basin, and a dedicated shower area. It offers a complete working drawing detail that is perfect for architects, designers, and contractors who require accurate and practical design elements for restroom spaces.
The drawing includes clear and precise measurements, detailed sections, and elevations to facilitate seamless integration into larger architectural plans. Whether you're designing a residential or commercial bathroom, this AutoCAD file will help ensure that your design meets all functional and aesthetic requirements.
The drawing includes clear and precise measurements, detailed sections, and elevations to facilitate seamless integration into larger architectural plans. Whether you're designing a residential or commercial bathroom, this AutoCAD file will help ensure that your design meets all functional and aesthetic requirements.
Show more
Downloads in last 24 hours
Product Details
| Category | Primary Areas |
| Software | Autocad DWG |
| File ID | 842 |
| Type | Free |
