Pantry Design and Detail AutoCAD File

Download this detailed AutoCAD drawing of a kitchen counter measuring 9’x2’x2’10” (H), featuring both under-counter cabinets and upper cabinets with ledges placed at the sides. The kitchen design includes solid concrete skirting, finished with laminate and a countertop made of granite, marble, or neno white material.

The under-counter space is divided into six parts, with five parts having openable shutters and two parts featuring vertically designed drawers. One section contains three drawers, while another has two drawers. The under-counter cabinets are finished with wooden textured laminate, and the upper cabinets, which also have openable shutters, are finished with a solid mild color ducco.

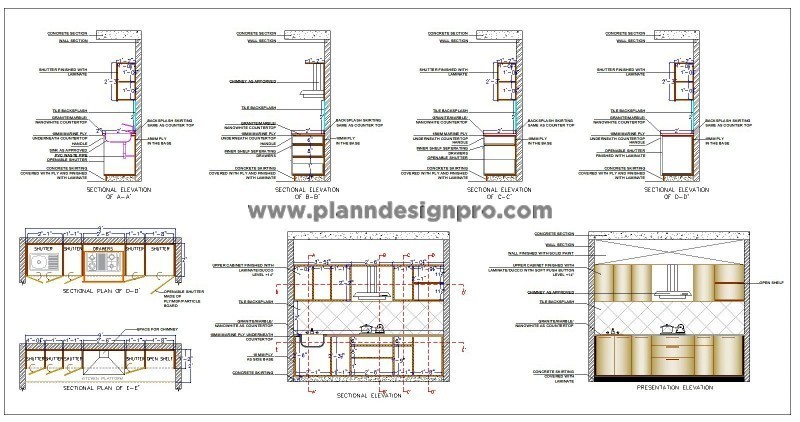

This AutoCAD file includes comprehensive working drawings and construction details, covering the plan, elevation, sections, and all necessary blow-up fixing details. Ideal for architects and interior designers, this kitchen counter CAD drawing provides precise and thorough details for your project.
