Double Bed CAD Furniture Detail
×
Posted By - Prateek Mishra
Posted By - Prateek Mishra
Description

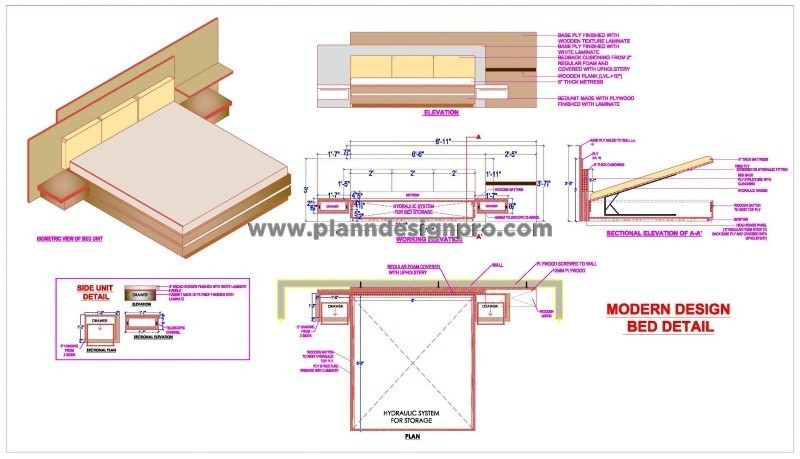

Get access to this detailed CAD drawing of a bed, measuring 6 feet in length, 6 feet 6 inches in width, and 1 foot 6 inches in height (with mattress). Crafted from plywood and finished with laminate, this bed features a hydraulic system for convenient storage. The bed base boasts two laminate finishes: one in white and the other in a dark or wooden textured laminate.
The bed back base is designed with two levels: one finished in dark or wooden textured laminate and the other in white laminate. It includes rectangular-shaped cushioning made of regular foam and covered with upholstery for added comfort. Additionally, the unit features a wooden plank with a depth of 10 inches for storage purposes.
This CAD drawing includes comprehensive working drawings and construction details, encompassing plans, elevations, sections, and detailed blow-up fixing instructions.
The bed back base is designed with two levels: one finished in dark or wooden textured laminate and the other in white laminate. It includes rectangular-shaped cushioning made of regular foam and covered with upholstery for added comfort. Additionally, the unit features a wooden plank with a depth of 10 inches for storage purposes.
This CAD drawing includes comprehensive working drawings and construction details, encompassing plans, elevations, sections, and detailed blow-up fixing instructions.
